DESCRIPTION

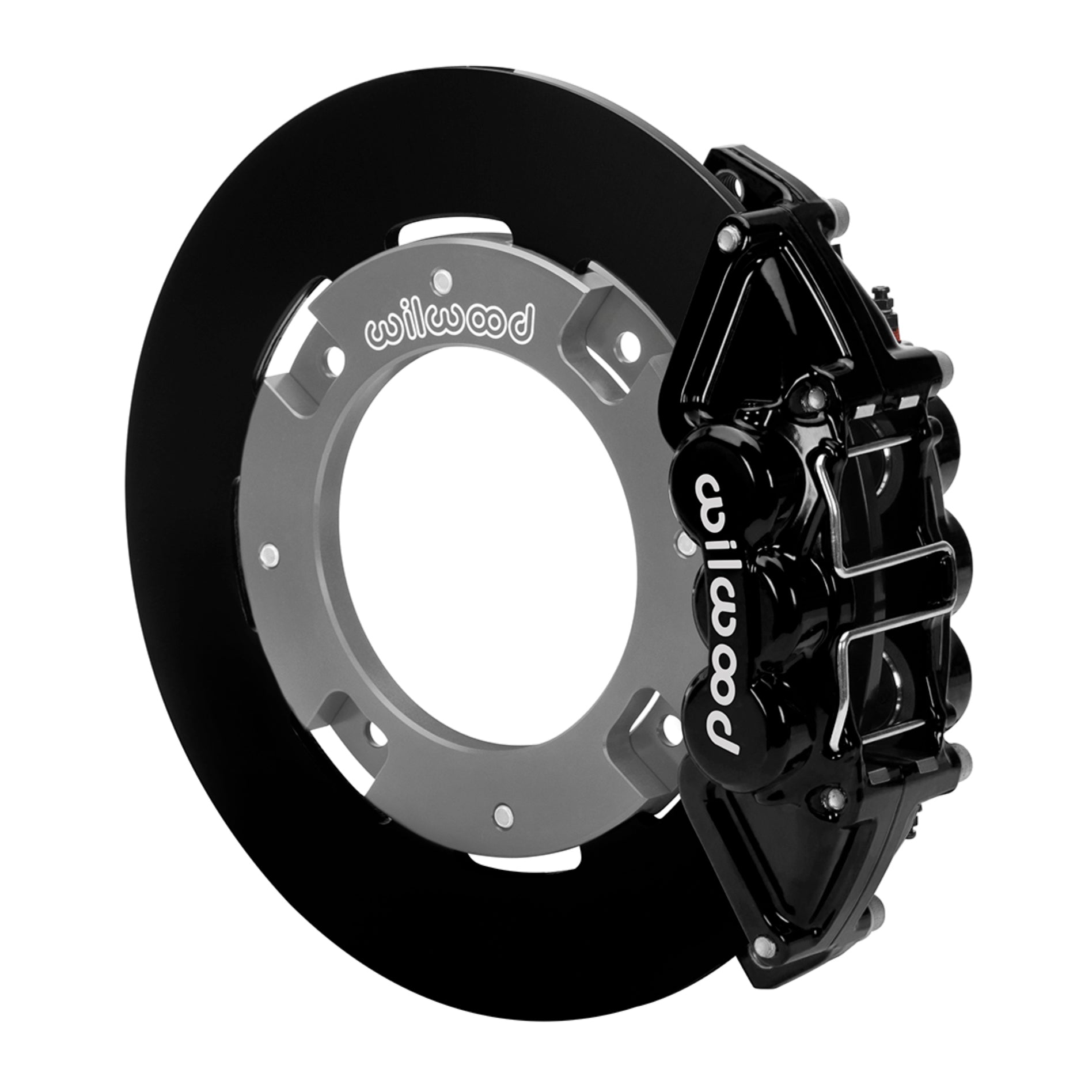

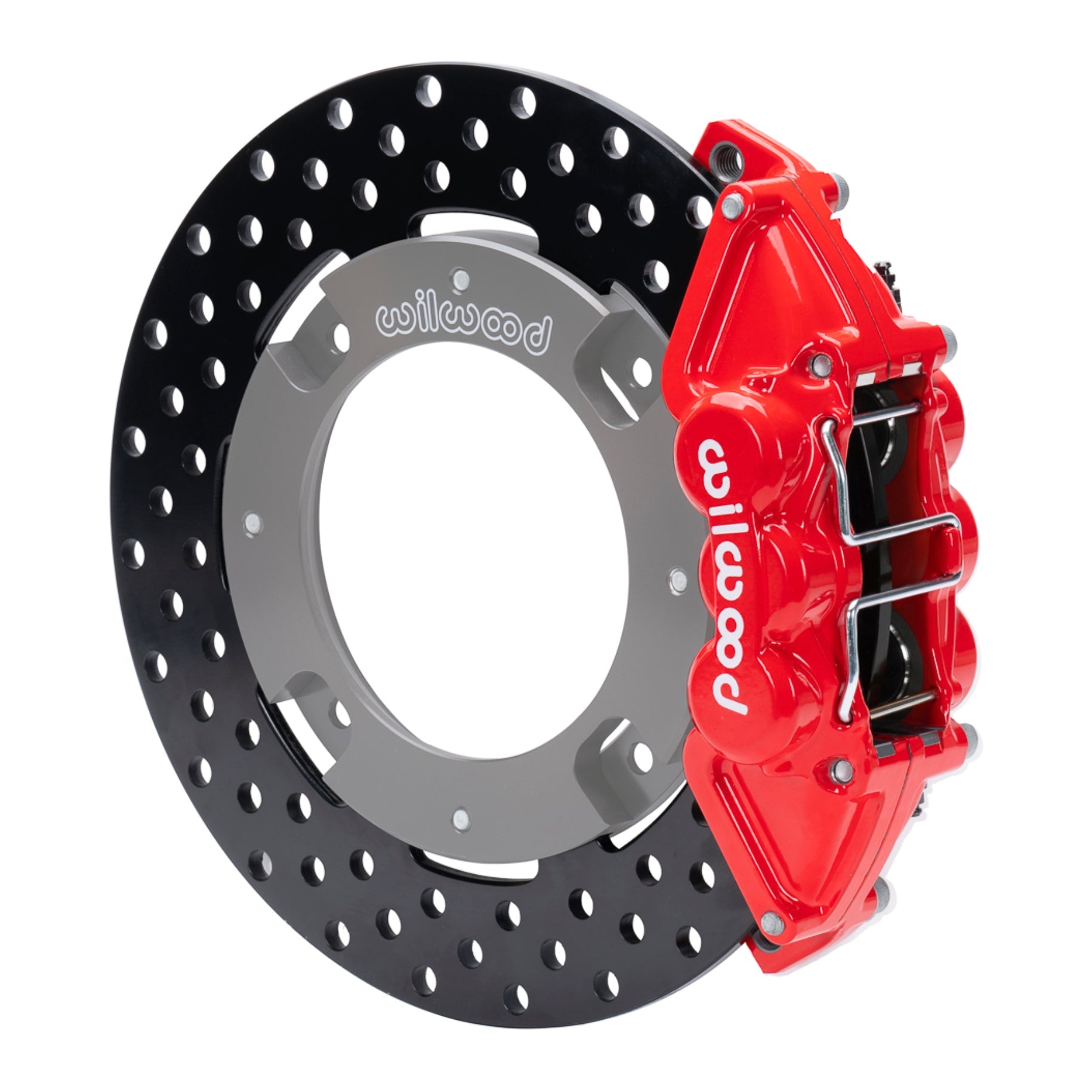

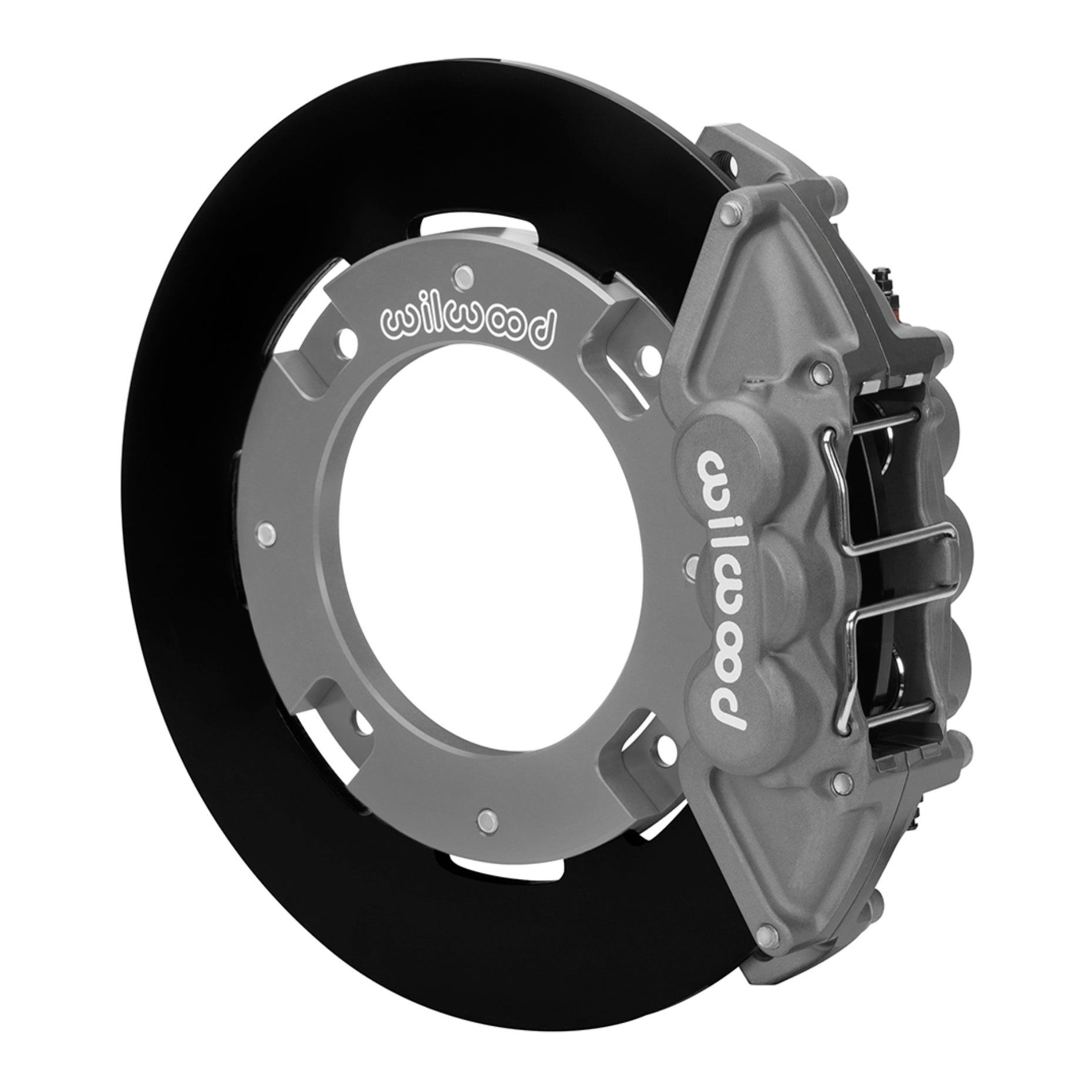

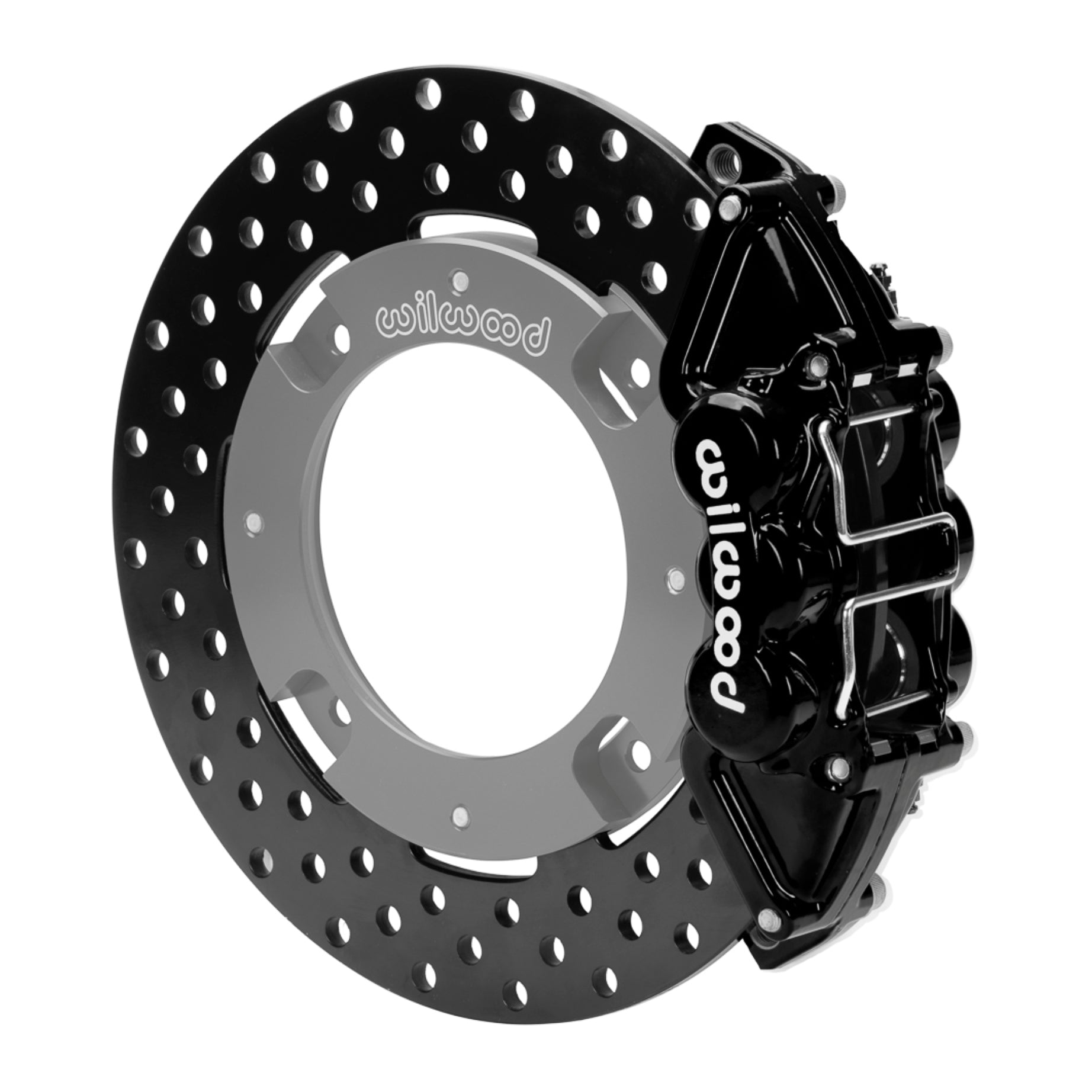

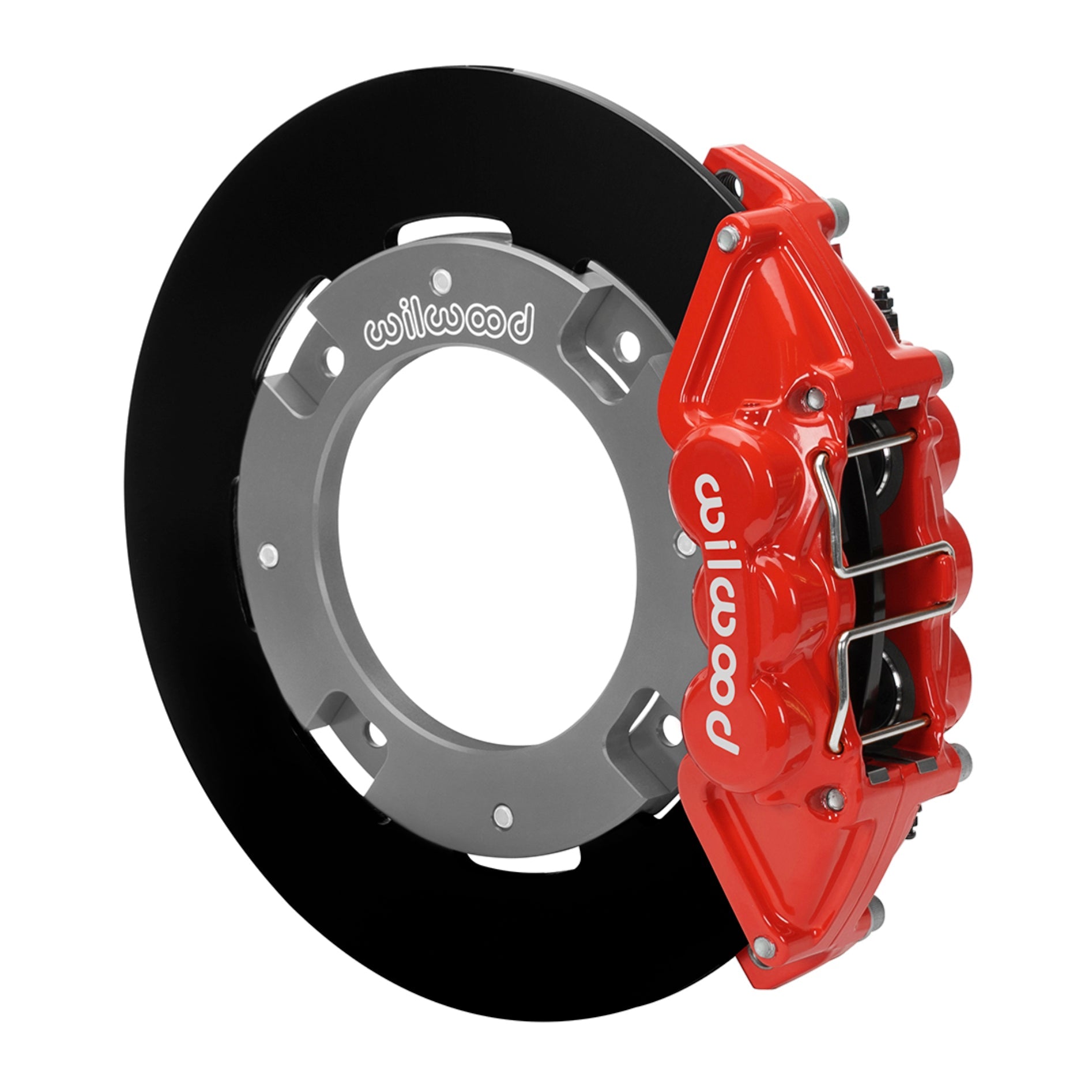

Introducing Wilwood's big brake kits for Can-Am X3 with fixed-mount calipers and larger dynamically-mounted steel rotors to reduce piston knockback and increase thermal capacity. Forged aluminum calipers have been purpose-designed specifically for the side-by-side market to provide increased clamping force with reduced deflection. Wilwood’s decades of engineering and manufacturing of high-performance brake systems make it the best choice for aftermarket big brake systems for Can-Am UTV enthusiasts and racers. Designed and built in the USA, Wilwood incorporates real-world testing and fitment into every brake kit.

These kits feature dynamically mounted rotors and upgraded calipers for popular side-by-side machines. Kits combine fixed mount multi-piston calipers with greater clamping force, and larger diameter floating rotors for more brake torque, improving braking on higher-powered UTVs. Forged aluminum differential-bore four and six piston calipers reduce deflection and provide more uniform engagement to increase braking force and improve feel. High-friction steel rotors, are up to 20% greater in diameter and thicker for less distortion. Dynamically mounted rotors reduce thermal stress and prevent piston knockback from rough terrain.

Looking to step it up further? Wilwood Race Grade Kits have steel mounting hats, hard-anodized aluminum calipers, and an even more aggressive pad compound.

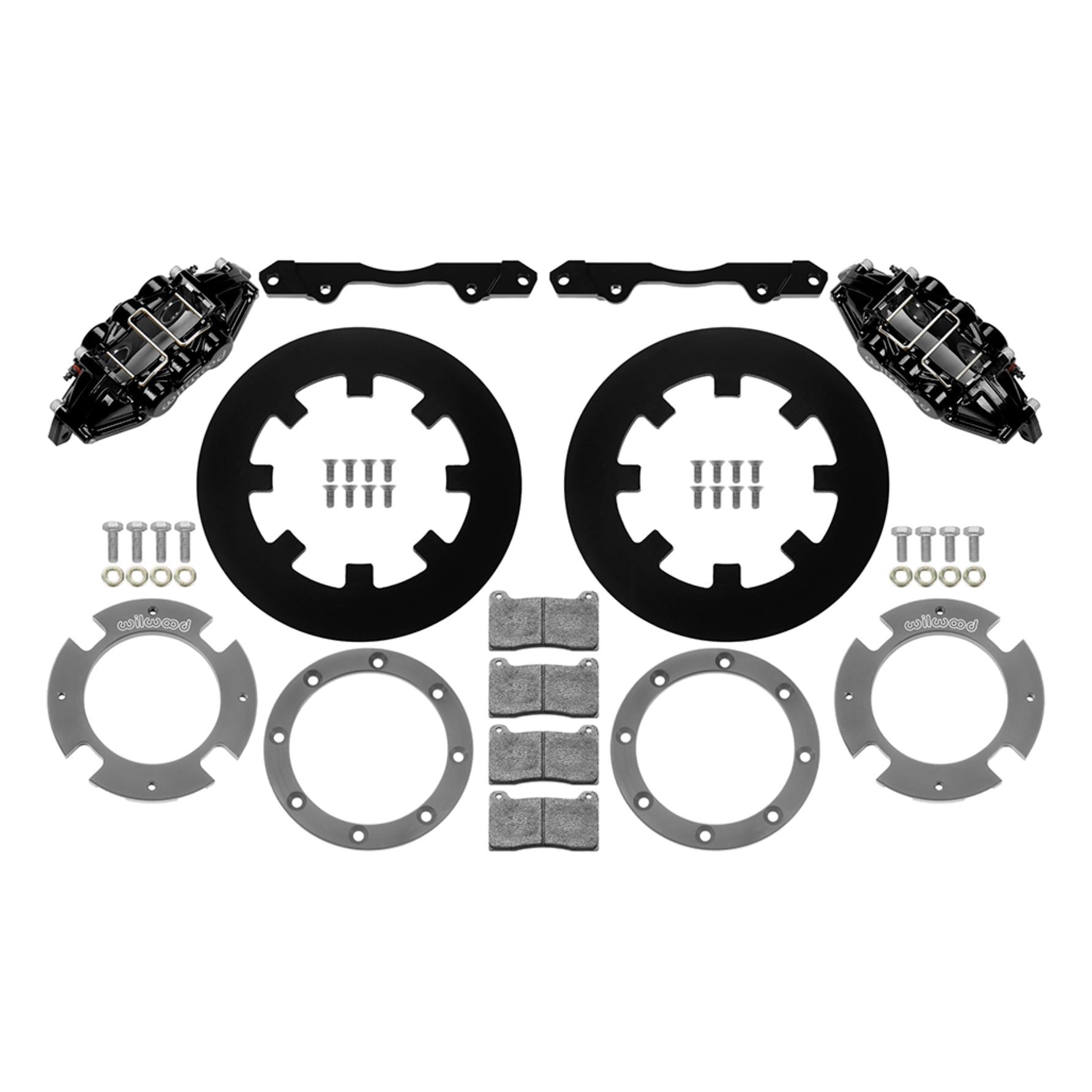

KIT SUMMARY

• Mount Type: Lug
• Caliper Type: 6 Black or Red Powder Coat or Gray Type III Anodized
• Rotor Diameter: 11.25
• Minimal Wheel Diameter Required: 14
• Instructions: All non-custom brake kits come with detailed instructions in packaging

EVP DISCLAIMER: This Brake Kit may fit 14-inch wheels. Please refer to the Wheel Clearance Diagram to see if it will fit your specific wheel.

FITMENT

Can-Am Maverick X3 900 HO 2018
Can-Am Maverick X3 DS Turbo 2021-2023
Can-Am Maverick X3 DS Turbo R 2020-2021
Can-Am Maverick X3 DS Turbo RR 2022-2023
Can-Am Maverick X3 Max DS Turbo 2021-2023
Can-Am Maverick X3 Max DS Turbo R 2020-2021
Can-Am Maverick X3 Max DS Turbo RR 2022-2023
Can-Am Maverick X3 Max RS Turbo R 2020-2021
Can-Am Maverick X3 Max RS Turbo RR 2022-2023
Can-Am Maverick X3 Max Turbo 2018-2020
Can-Am Maverick X3 Max Turbo R 2017-2019
Can-Am Maverick X3 Max X ds Turbo R 2017-2019
Can-Am Maverick X3 Max X ds Turbo RR 2020-2023
Can-Am Maverick X3 Max X mr Turbo RR 2020-2023
Can-Am Maverick X3 Max X rs Turbo R 2017-2019
Can-Am Maverick X3 Max X rs Turbo RR 2020-2023
Can-Am Maverick X3 Max X rs Turbo RR Smart-Sho 2021-2023
Can-Am Maverick X3 RS Turbo R 2020-2021
Can-Am Maverick X3 RS Turbo RR 2022-2023
Can-Am Maverick X3 Turbo 2018-2020
Can-Am Maverick X3 Turbo R 2017-2019
Can-Am Maverick X3 X ds Turbo R 2017-2019
Can-Am Maverick X3 X ds Turbo RR 2020-2023
Can-Am Maverick X3 X mr Turbo 2018-2021
Can-Am Maverick X3 X mr Turbo R 2018-2019
Can-Am Maverick X3 X mr Turbo RR 2020-2021
Can-Am Maverick X3 X mr Turbo RR 64 2022-2023
Can-Am Maverick X3 X mr Turbo RR 72 2022-2023
Can-Am Maverick X3 X rc Turbo 2018-2021
Can-Am Maverick X3 X rc Turbo R 2018-2019
Can-Am Maverick X3 X rc Turbo RR 2020-2021
Can-Am Maverick X3 X rc Turbo RR 64 2022-2023
Can-Am Maverick X3 X rc Turbo RR 72 2022-2023
Can-Am Maverick X3 X rs Turbo R 2017-2019
Can-Am Maverick X3 X rs Turbo RR 2020-2023
Can-Am Maverick X3 X rs Turbo RR Smart-Shox 2021-2023

WARRANTY

Wilwood offers a 30-day return policy for direct sales from their (and their dealers’) website(s). This excludes any items that have been installed or removed. To return an item, customers must contact Wilwood's customer service department for pre-authorization and the appropriate return address. For more manufacturer warranty information, please call (805) 388-1188 or visit online here.

INSTRUCTIONS

Wilwood Rear Brake Kit Installation Instructions for Can-Am Maverick X3
