Whipple Superchargers S650 Stage 1 Gen 6 3.0L Supercharger Kit
Transform your 2024–2025 Mustang GT or Dark Horse into an 810‑horsepower beast with Whipple Superchargers S650 Stage 1 Gen 6 3.0L Supercharger Kit. Thus, this Stage 1 package delivers unrivaled power, drivability, and 50‑state‑legal confidence—backed by a 3‑year / 36,000‑mile powertrain warranty.
Key Benefits — At‑a‑Glance
-
Up to 810 HP & 640 lb‑ft on 93‑octane fuel*
-
50‑state legal (CARB EO D‑231‑119 for 2024, D‑231‑128 for 2025)
- Patented dual‑pass, dual‑intercooler technology for ultra‑low intake temps
-
No cutting or permanent mods—fully reversible installation
-
Tomahawk flash tool with OEM‑level calibration for seamless tuning
-
3 yr / 36k‑mile warranty keeps your investment protected
*Dark Horse figures. GT models may see 8–12 HP less due to factory exhaust flow.
Power & Performance Specs for Whipple Superchargers S650 Stage 1 Gen 6 3.0L Supercharger Kit
|
Stage 1 Output (93‑Octane) |
Stock Output** |
% Gain |
| Horsepower |
810 HP |
486 HP |
+66 % |
| Torque |
640 lb‑ft |
418 lb‑ft |
+53 % |
What’s Inside the Stage 1 Kit?

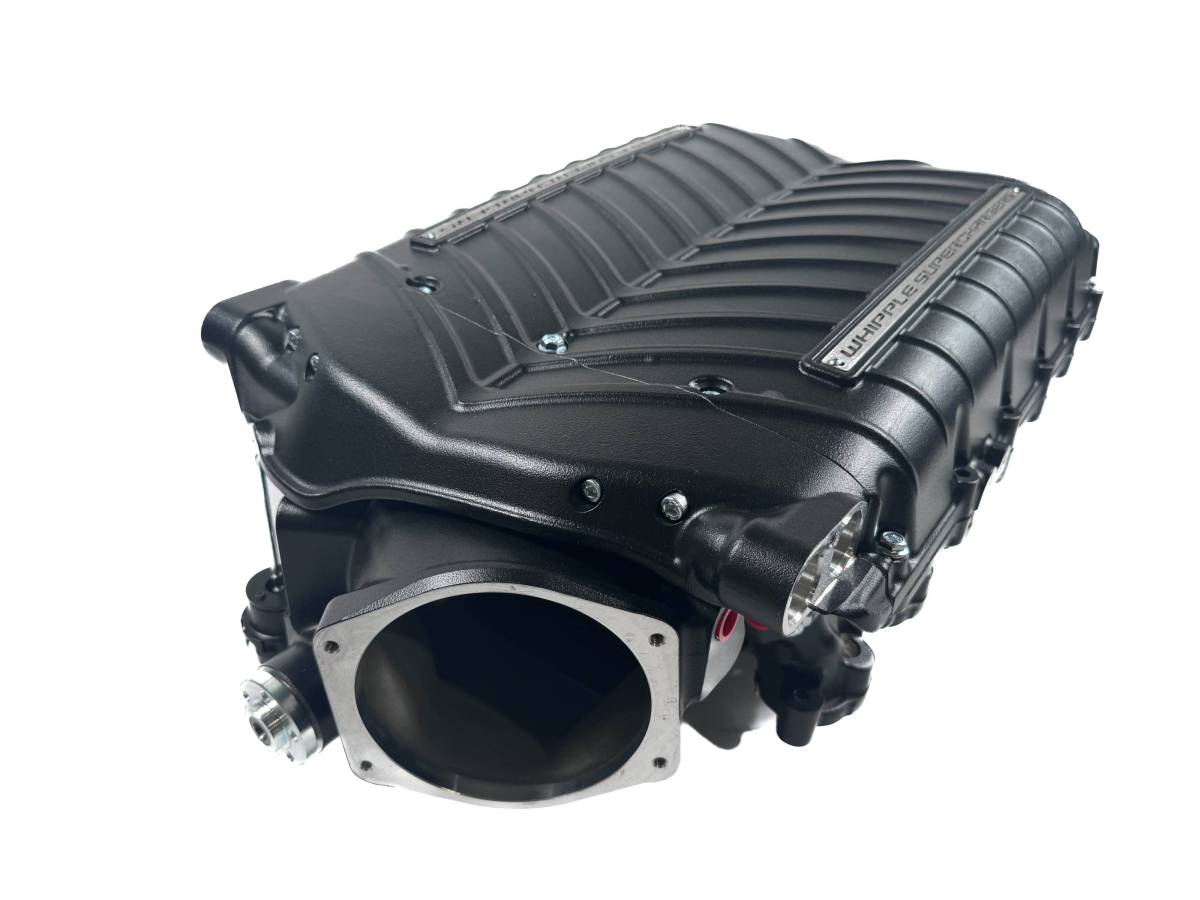

- Whipple Gen 6 3.0 L twin‑screw supercharger head unit
-
GT500 92 mm throttle body & billet fuel rails
- GT500 flow‑matched fuel injectors
-
Massive “Y” intake (flows 1,800 HP worth of air) + dual high‑flow filters
-

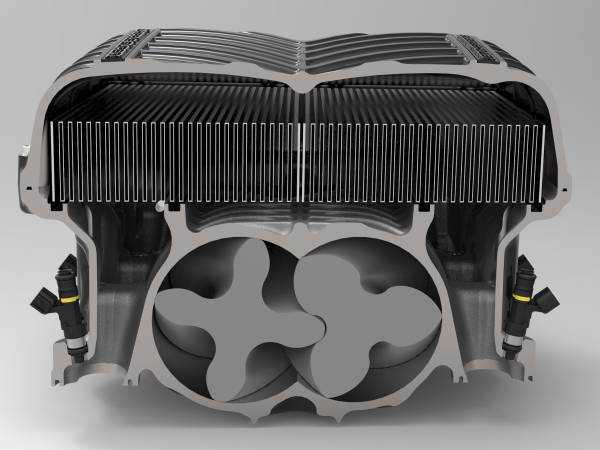

Dual‑pass dual‑intercooler core for repeatable track performance
-
Tomahawk flash programmer with pre‑loaded calibration
-
All hardware, belts, hoses, and brackets—ready to bolt on
Upgrade options: color‑matched powder coat, larger heat exchanger, dual intercooler pumps, and cold‑air‑intake kit. Ask for details!
Why Gen 6 Is a Game‑Changer
-

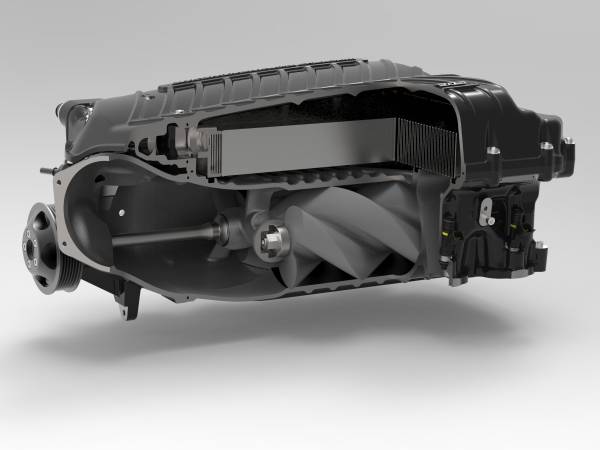

Re‑engineered rotors & ports boost efficiency and reduce inlet temps.
-
120 mm inlet accepts 92 mm, 112 mm, or 120 mm throttle bodies for future power goals.
-
Dual‑cooling architecture chills charge air twice before it reaches the manifold—perfect for street driving and open‑track sessions.
-
OEM‑grade calibration retains factory drive modes and smooth idle while giving instant throttle response.
Fitment & Installation for Whipple Superchargers S650 Stage 1 Gen 6 3.0L Supercharger Kit
-
Vehicles: 2024–2025 Ford Mustang GT & Dark Horse (S650 platform)
-
Emissions: 50‑state legal (CARB EOs listed above)
-
Install time: 8–10 hours with basic hand tools—no engine or trans removal.
-
Reversibility: All stock parts can be re‑installed if you ever return to factory trim.
Warranty & Support for Whipple S650 Supercharger, S650 Mustang Stage 1 Supercharger, 3.0 L Whipple Gen 6 Kit
Whipple backs this kit with a 3‑year / 36,000‑mile warranty, covering both the supercharger and engine. So, drive hard, worry less.
Order Yours Today
Stock is limited. So, add the Whipple S650 Stage 1 Supercharger Kit to your cart now or call 262‑692‑9035 to speak with a West Bend Dyno performance specialist.
