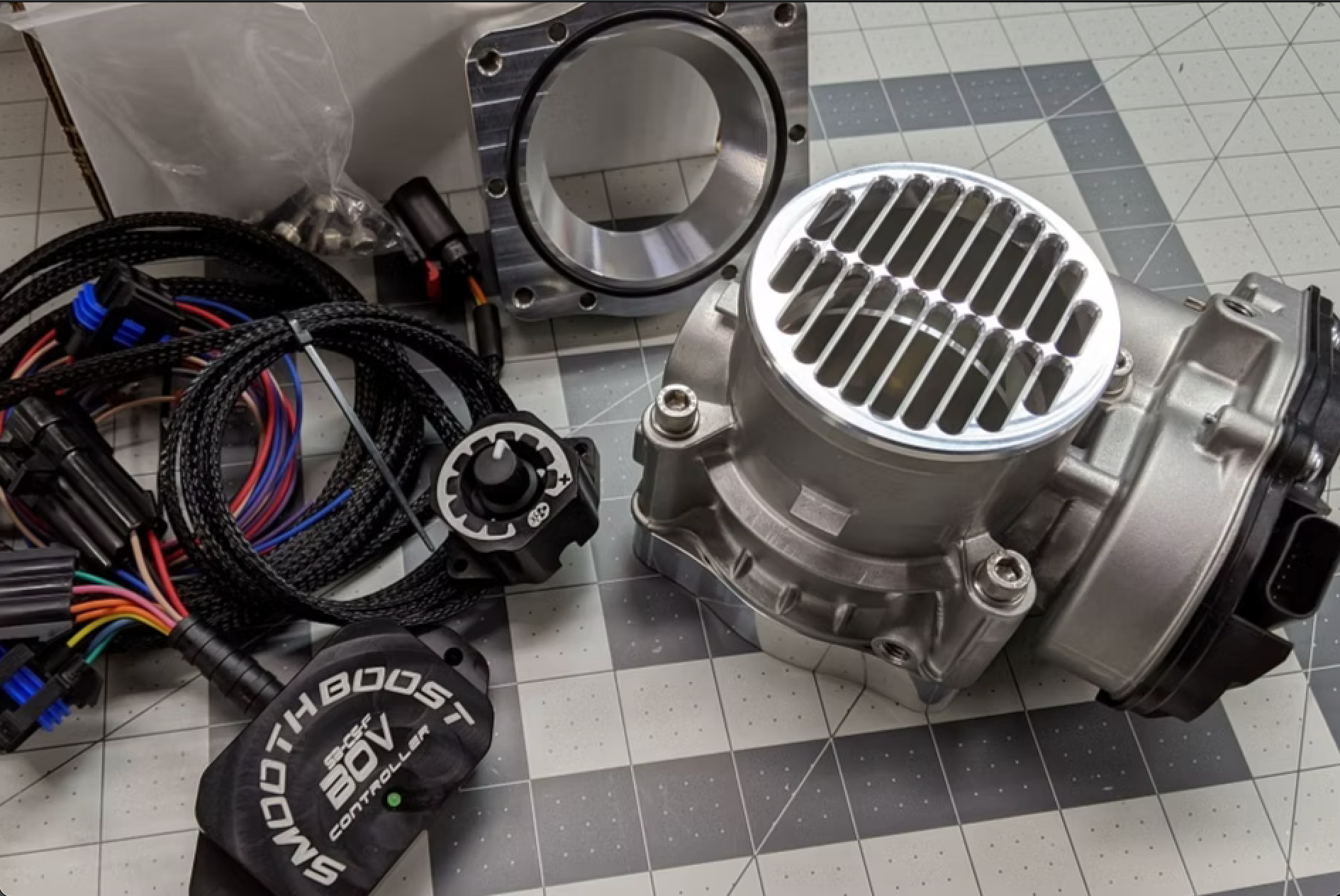

SmoothBoost - Centrifugal Supercharger Boost Control BOV

Electronic BOV:

Bolt on replacemnet for the 6-bolt Red Race Valve

Other custom mouting options are available upon request

This supercharger boost controller kit replaces the BOV from a conventional open/closed pneumatic actuator into a state of the art drive by wire system that is capable of controlling the boost level from either an open loop boost knob or by using PWM output of a standalone ECU or other device.

Boost is referenced on 0-5v signal from the Throttle Position (TPS) instead of the conventional Manifold vacuum (MAP).

Great for use with BIG CAMS that don't make enough vacuum to operate the bypass valve correctly

Better drivability

Boost scramble input to over-ride lower boost setting

Boost Kill input that can be interfaced to other electronics to act as a valet or failsafe

Optional BOOST KNOB lowers the entire boost curve giving you the same effect as swapping pulley sizes

Optional DCA MODULE: Ability to do Time, Speed, RPM, Ethanol boost control strategies in conjunction with a standalone ECU, nitrous controller or the Kaizen Relay module (available for some applications)
