GM LS COMPATIBLE 427 C.I. PRO SERIES ENGINE - 605 HORSEPOWER - BASE DRESSED - NO ECU / HARNESS

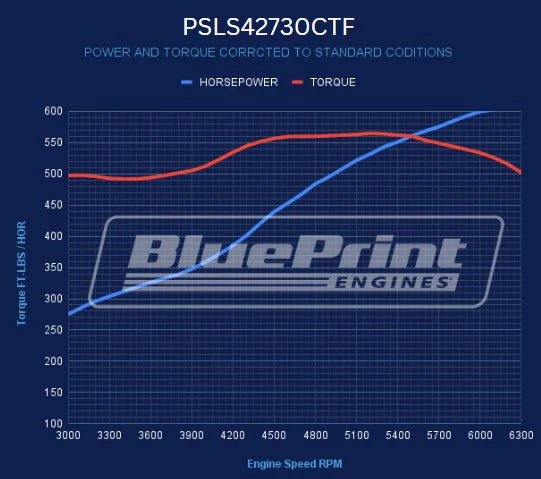

Horsepower & Torque: 605 Horsepower / 565 FT. LBS. Torque

Cylinder Heads: BluePrint Engines LS3 Aluminum Cylinder Heads

Compression Ratio: 11:1

Camshaft: Hydraulic Roller Cam - .624 Intake / .624 Exhaust Lift and 239 Intake / 255 Exhaust Duration @ .050 - 114° LSA - Three Bolt Cam

Pistons: Forged

Crankshaft: Steel Crank - 4.125" Stroke and 6.125" Rods

This engine Does NOT come with a Fuel Injection ECU and Wiring Harness.

Fuel Recommendation: 91+ Octane

OVERVIEW:

The LS-compatible platform is the king of street machines—and this BluePrint Engines 427 C.I. Pro Series monster proves why. Unleash raw, LS-powered fury with a street-scorching 605 horsepower and 565 ft-lbs of torque. This base dressed beast packs a 11:1 compression ratio, BluePrint aluminum heads, a hydraulic roller cam, and hypereutectic pistons, and nodular iron crankshaft, all locked into a high-strength LSX-style cast iron block. With the drive-by-wire throttle pedal, sensors, and throttle body included, it’s ready to rip—just plug in, fire it up, and hang on.

DESCRIPTION:

• Horsepower & Torque: 605 Horsepower / 565 ft. lbs. Torque
• Compression Ratio: 11:1
• BluePrint Engines LS3 Aluminum Heads
• BluePrint Engines Hydraulic Roller Cam
• BluePrint Engines Forged Pistons
• BluePrint Engines Forged Crankshaft


Block:

• BluePrint Engines High Strength Cast Iron (LSX Style) Block
• Increased Deck Thickness and Strength Webbing
• Utilizes OEM LS3 Front and Rear Covers
• Improved Water Jacket Design
• Extended Cylinder Skirt
• 1-piece Rear Main Seal

• Priority Main Oiling
• 4.0685" Bore

• 6-bolt Main

ROTATING ASSEMBLY:

• Forged Crankshaft
• 4.125" Stroke
• Forged 6.125" Connecting Rods
• Forged Pistons
• Internally Balanced Front and Rear

CYLINDER HEADS:

• BluePrint Aluminum Cylinder Heads - PS8015
• 69cc Chamber
• 2.165" Intake / 1.590" Exhaust Valves
• 259cc Intake / 102cc Exhaust Runners

CAM SPECS:

• Hydraulic Roller
• .624 Intake / .624 Exhaust Lift
• 239 Intake / 255 Exhaust Duration
• @.050-114 Degree Lobe Separation

ALSO INCLUDES:

• This engine Does NOT come with a Fuel Injection ECU and Wiring Harness
• LS Swap Oil Pan - Windage Tray - Pick Up Screen
• BluePrint Engines Fuel Injectors and Rail
• DBW Throttle Body - BPP12191019
• Water Pump - BPPLS126WP

• GM Plastic Intake Manifold

• Spark Plugs & Wires
• Harmonic Balancer

• Coil Packs

• Sensors

NOTES:

• Does NOT include any engine management/controller.
• This engine requires a non-weighted flex plate/flywheel.
• Recommended Fuel: 91 Octane
• BluePrint Engines recommends a 2200+ RPM stall converter.
• Retro fit oil pan will fit most 1955-1995 GM front engine, RWD, V8 cars
• Not for use in pollution-controlled vehicles or in dry sump applications.
• BluePrint Engines Recommends Air Intake Kit BPPLS01013 to ensure correct MAF calculations and Dyno calibration are maintained.
