Whipple Gen 6 Supercharger Mustang Mach 1 | Stage 1 System (2022–2023)

Whipple Gen 6 Supercharger Mustang Mach 1 | Stage 1 System (2022–2023)

Introducing the 50-State Legal Supercharger for the Modern Mach 1

Want to take your 2022–2023 Ford Mustang Mach 1 to the next level? The Whipple Gen 6 Supercharger Mustang Mach 1 is the ultimate bolt-on solution. Not only that, this Stage 1 system is 50-state legal and delivers an astonishing 765 horsepower and 640 lb-ft of torque—all while fully meeting U.S. emissions standards.

Now Featuring the Groundbreaking Gen 6 Supercharger | Whipple Gen 6 Supercharger Mustang Mach 1

Whipple’s all-new 3.0L Gen 6 front-feed twin-screw supercharger truly redefines efficiency and strength. Thanks to upgraded bearings, gears, rotors, and housing, it spins faster, lasts longer, and delivers power like never before.

Key Gen 6 Benefits:

• New 3/4 rotor combo with a 285-degree helix angle
• Redesigned bell mouth inlet and discharge port
• Optimized diameter-to-length ratio for maximum airflow
• Lower power draw and cooler intake temps than smaller roots-style units
• Supports larger throttle bodies with the optional 150mm Crusher™ inlet

Unmatched Cooling with Dual-Pass Intercooling Technology

Whipple didn’t stop at power. In fact, they raised the bar with a patented dual-core, dual-pass intercooler—bigger and more effective than even those found in Cobra Jet and S550 platforms.

Furthermore, combined with a high-capacity heat exchanger, water reservoir, and intercooler pump, this system ensures:

• Lower boost levels for longer engine life
• Faster cooling recovery after hard driving
• More consistent horsepower, every time you hit the throttle

Smart PCM Calibration for Peak Performance

Thanks to years of OEM and racing experience, Whipple’s team created a custom PCM calibration using the HP Tuners RTD flash tool.

This software manages:

• Spark timing
• Fuel delivery
• Knock detection
• Torque and throttle response
• Transmission shift points

As a result, your Mustang runs smoother, pulls harder, and adjusts to driving conditions in real time.

Designed for Growth and Simplicity

Every part of the system is engineered for future flexibility and hassle-free installation. Here’s what you can expect:

• Lightweight 6061 T6 billet aluminum pulley
• Adjustable billet idler system for flexible belt lengths
• Plug-and-play harnesses with OEM-style connections
• Optional 10-rib belt system for high-boost builds
• Full compatibility with throttle bodies from 80mm to 150mm
• No cutting or grinding on the engine, K-brace, or hood

What’s Included in the Complete Kit

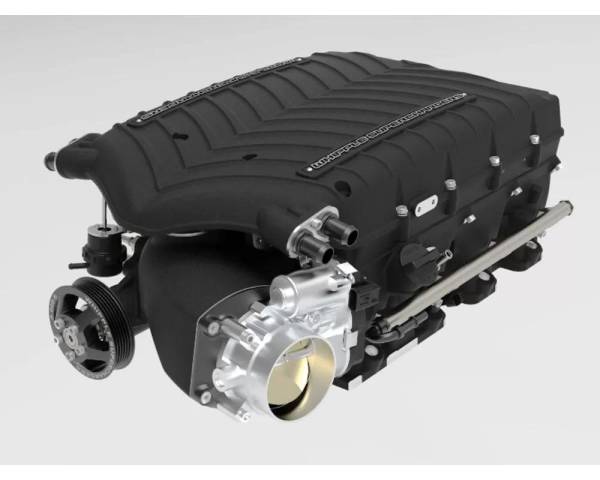

• Gen 6 3.0L Whipple Twin-Screw Supercharger
• Patented dual-pass intercooler system
• HP Tuners RTD programming tool
• High-flow intercooler pump
• Cold-air intake with 150mm Crusher™ inlet
• 6-rib belt setup with billet idler system
• IAT2 sensor and wiring harness
• Colder Iridium spark plugs
• All required hoses, fittings, and hardware
• EO #D-231-105 (50-State Legal)
• Available in black, polish, Ford textured blue, or custom powder coat

Exclusive S550 Platform Features | Whipple Gen 6 Supercharger Mustang Mach 1

• Largest intercooler core in its class
• Flat torque curve for stronger low-end power
• Dual-beam fuel injectors for higher flow
• Industry-leading air bypass system for reduced knock and better MPG
• Massive heat exchanger with 150% more coolant volume than competitors
• Instant boost response at throttle tip-in
• Fits under factory hood—no modifications required

Fitment

• ✅ 2022 Ford Mustang Mach 1
• ✅ 2023 Ford Mustang Mach 1
