2018-21 Ford Mustang 5.0L Edelbrock Stg 2 Complete Supercharger W/ Tune #15388

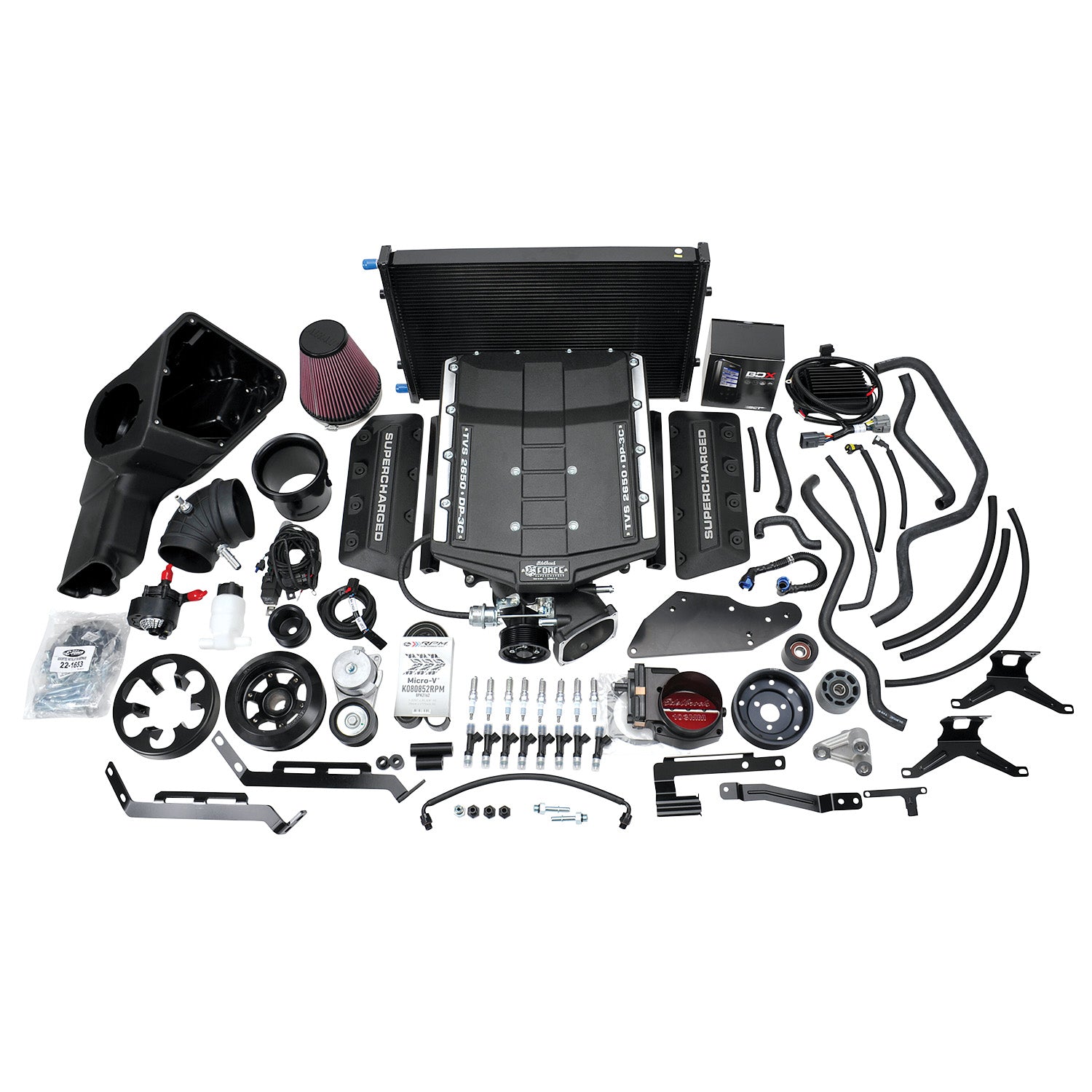

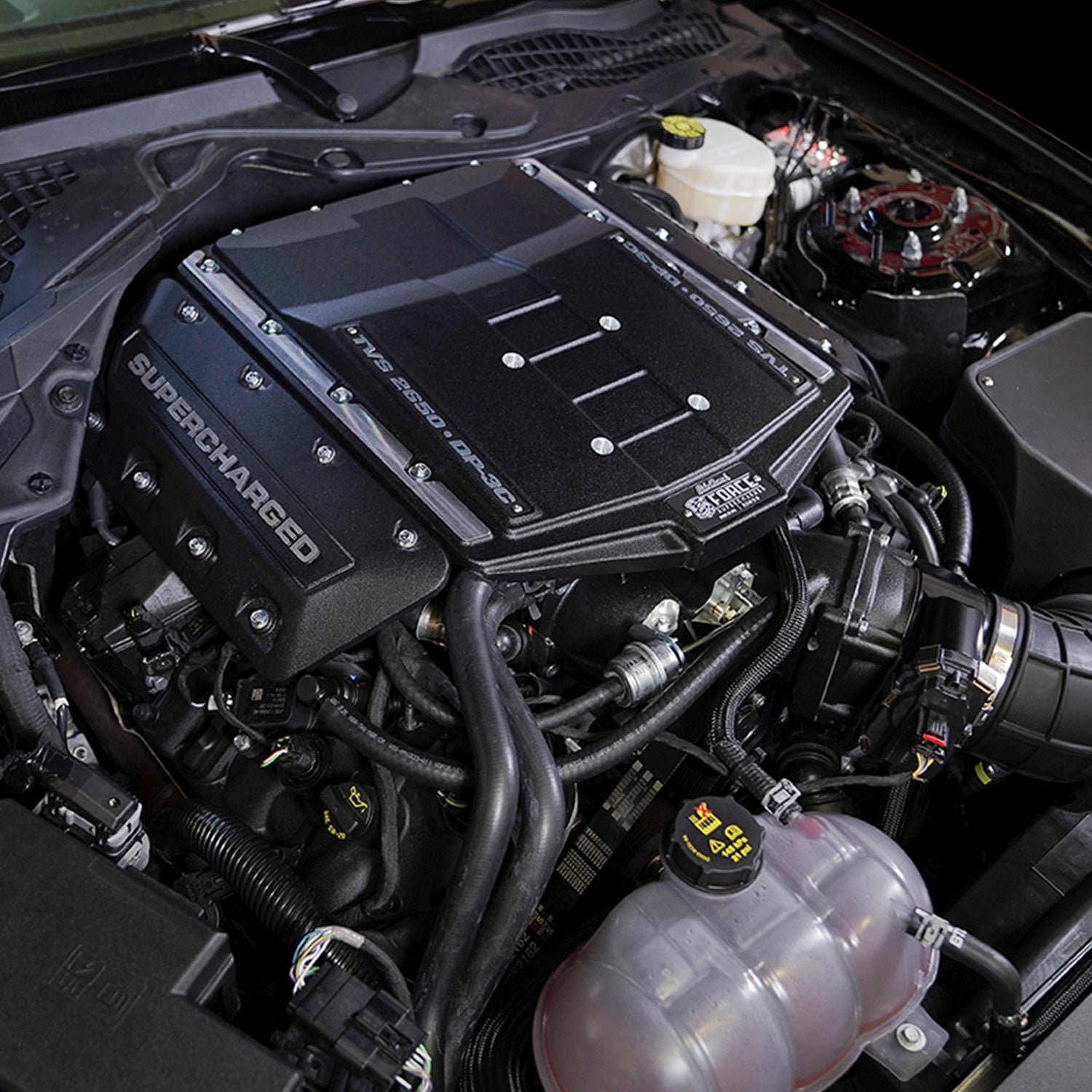

Edelbrock's highest horsepower, supercharger system is now available for owners of late-model Ford Mustangs with the 5.0L engine. The new Edelbrock Stage II Supercharger #15388 for the 2018-2021 Mustang is a complete kit that takes full advantage of the improved Gen 3 DI/PI Coyote engine. At the heart of this system is the highly efficient R2650 TVS rotor assembly with an integrated high-capacity DP3C (dual-pass, three-core) air-to-water intercooler for lower inlet air temperatures and increased power potential. New 170-degree high-twist lobes, bigger bearings and beefier timing gears ensure unparalleled reliability with smooth acceleration throughout the powerband. To support the additional Stage II power increase, the fuel system components are upgraded to include larger 50 lb/hr direct-port fuel injectors along with a Fuel Pump Voltage Booster. A dramatic increase in airflow over the Stage I kit comes from a new 103mm billet aluminum throttle body (23mm larger than Stage I) and high-flow air intake system with 113mm MAF housing. Edelbrock's 8-Rib Drive Belt upgrade minimizes slippage to maintain consistent boost pressure under full throttle. Each supercharger comes finished with a durable black powder-coating that blends nicely into the Mustang engine compartment and includes a preformed hose kit, hardware and a full-color step-by-step instruction manual to streamline the installation process. This is a true bolt-on that installs cleanly with no modifications to the hood or body. This potent Stage II system for the new Mustang is backed by Edelbrock's industry-leading 3-Year/36,000-mile Powertrain Warranty and is 50-state emissions legal.

Attributes:

• Brand Name: Edelbrock
• GTIN: 00085347153886
• Air Filter Included: Yes
• Calibration: Yes
• Center Housing Cooling Type: Intercooler
• E.O.: D-215-122
• Finish: Black Powder Coated
• Fuel Injector Type: 50
• Fuel Pump Included: Yes
• Gasket Or Seal Included: Yes
• Harmonic Balancer Diameter: 7.75
• Hose Included: Yes
• Housing Material: Cast Aluminum
• Internal Step Up: Yes
• Maximum Boost Pressure: 16.3
• Maximum Horsepower: 686RW
• Maximum Pressure Reading: 16.3
• Maximum Torque: 533RW
• Mounting Bracket Included: Yes
• Mounting Hardware Included: Yes
• Oil Capacity: 150
• Outside Pulley Diameter: 3.5
• Pulley Belt Width: 8-Rib
• Quantity: Kit
• RGL: WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
• Rotor Type: Eaton TVS 2650
• Spark Plugs Included: Yes
• System Type: Stage 2 - Street/Strip System
• Universal Or Specific Fit: Specific
• Vehicle Model: Mustang

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: KT
• Dimension: 44 x 44 x 26 inches
• Weight: 178 POUNDS
