2019-20 Ford F-150 5.0L 4V Edelbrock Stage 1 Supercharger Kit W/ Tune #15812

The Edelbrock Stage 1 Supercharger Kit for F-150 5.0L is a complete, bolt-on system designed to deliver serious horsepower and torque to your 2019–2020 Ford F-150 5.0L V8. This kit includes Edelbrock’s high-efficiency R2650 TVS head unit and a preloaded calibration for easy tuning right out of the box.

Key features of the Edelbrock Stage 1 Supercharger Kit for the F-150 5.0L:

• R2650 TVS supercharger head unit with integrated intake manifold

• Plug-and-play tuning included for use with the factory PCM

• 50-state emissions legal (CARB EO#: D-215-107)

• Self-contained oil system with no drilling or tapping required

• Black powder-coated finish for OEM-style appearance

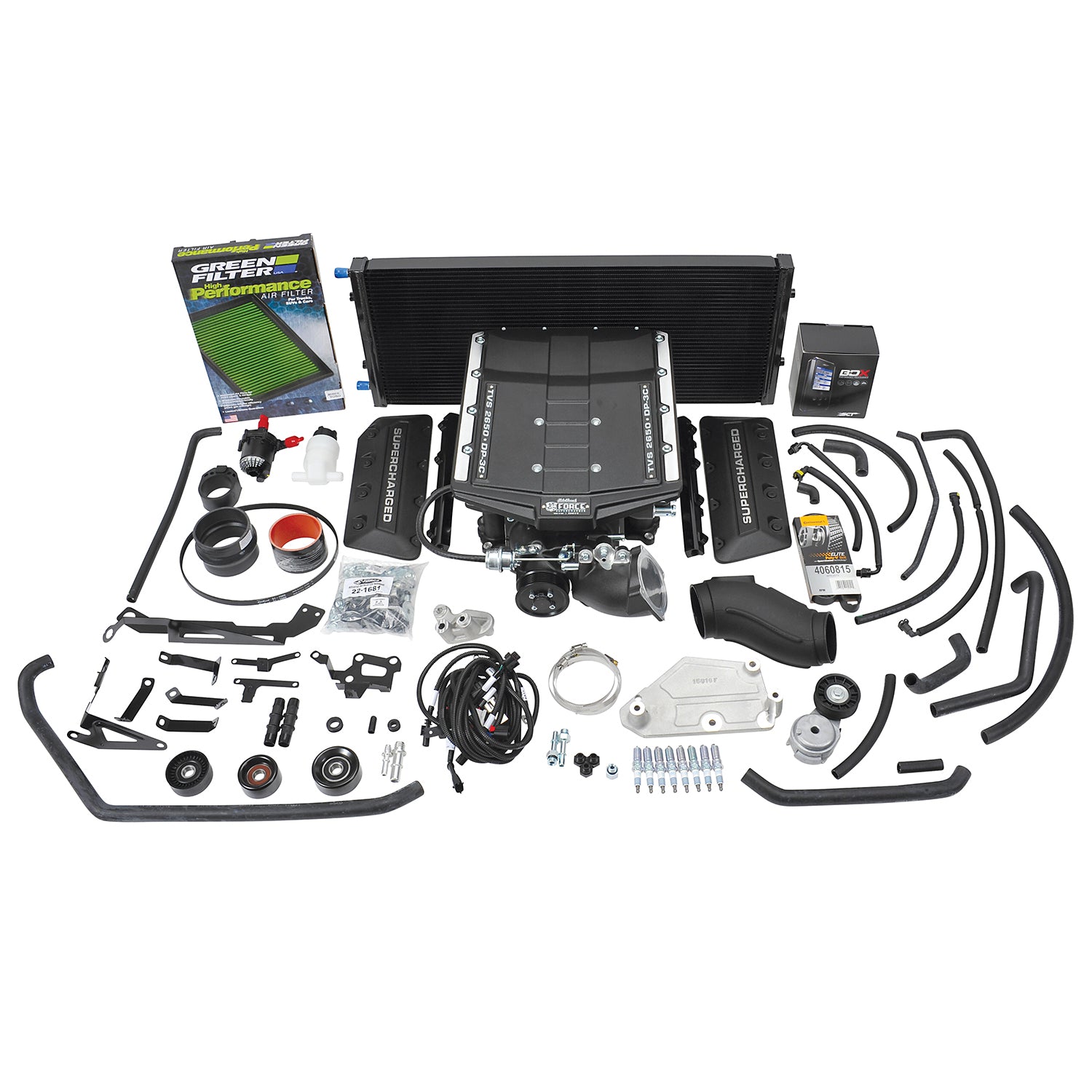

• All hardware, gaskets, and brackets included

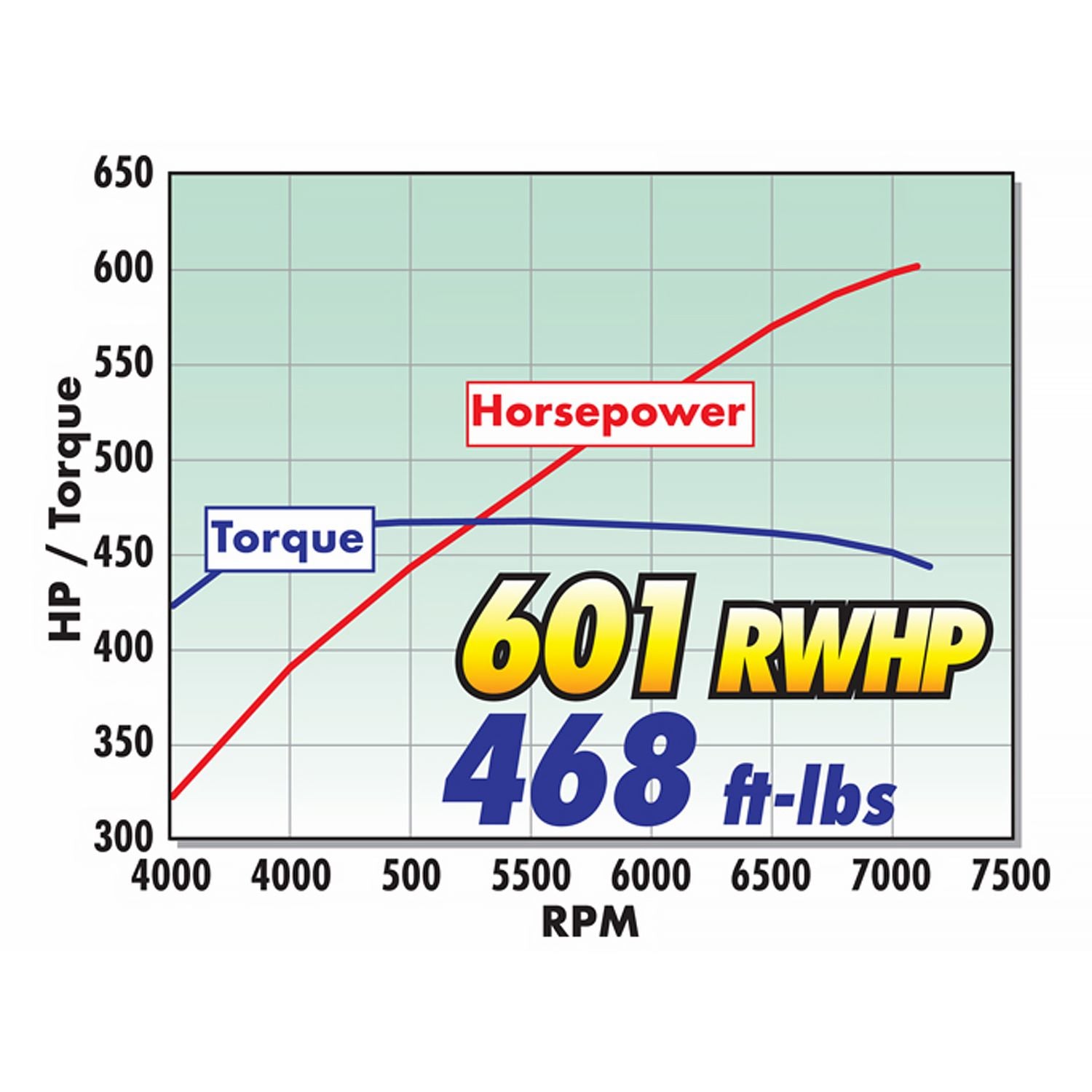

This kit is engineered to deliver reliable performance gains while maintaining daily drivability and factory-like manners under normal driving conditions. On 91-octane fuel, this system produces up to 601 horsepower and 500+ lb-ft of torque.

Fitment:

– Ford F-150 5.0L 4V Coyote V8 (2019, 2020)

– 4WD and 2WD models compatible

– Designed for stock engines

Edelbrock Part #: 15812

Emissions Status: 50-State Legal

Tune Included: Yes (handheld programmer with preloaded file)

Warranty: 3-Year/36,000-Mile Limited Warranty

This is one of the most complete and street-friendly supercharger systems available for the 5.0L F-150 platform. If you want OEM-level fit, finish, and performance with the ability to tow, commute, or race, Edelbrock delivers.

Need help with install or questions about tuning? Contact our team.

Looking for other forced induction options? Browse all superchargers.
