Aeromotive Phantom 340 Fuel System - Return Style Carb

Aeromotive Phantom 340 Fuel System - Return Style Carb

The Aeromotive Phantom 340 Return-Style Fuel System is the ultimate in-tank solution for high-performance carbureted applications. Whether you’re upgrading a muscle car or building a track-ready street beast, this system delivers high flow, E85 compatibility, and slosh-resistant performance without the need for custom welding or an aftermarket fuel cell.

At the heart of the system is the 340LPH Stealth electric fuel pump, capable of supporting up to 850 HP naturally aspirated or 750 HP on forced induction. The included foam and bladder baffle ensures consistent fuel pickup under hard acceleration, cornering, or low fuel conditions — making it ideal for drag racing, autocross, and spirited street use.

The Phantom 340 system is designed to fit into virtually any tank from 5.5” to 11” deep, turning your factory tank into a modern high-performance setup with a return-style design.

Key Features:

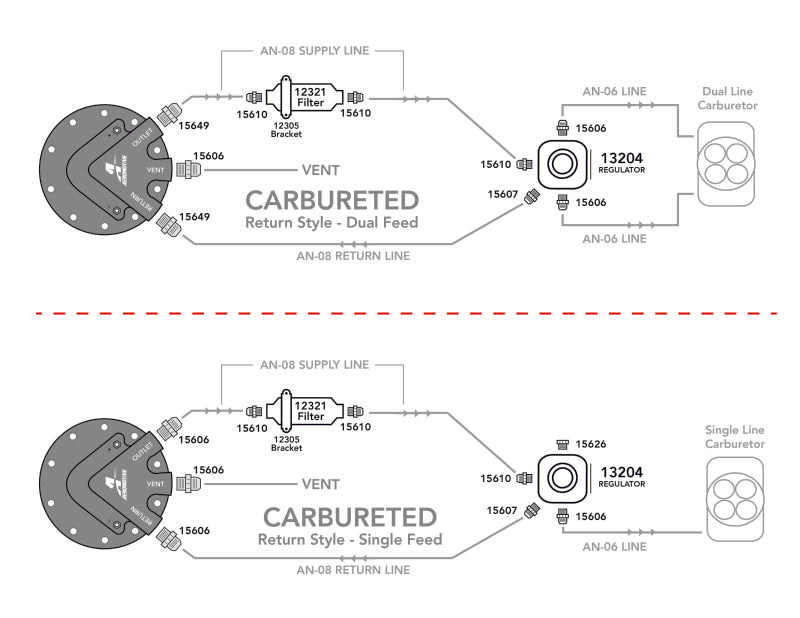

• Return-style system for carbureted applications

• 340LPH Stealth fuel pump included

• Supports up to 850 HP NA / 750 HP forced induction

• Fits tank depths from 5.5” to 11”

• In-tank foam baffle prevents fuel starvation

• Quiet, reliable, and E85 compatible

• Universal application – perfect for restomods, street cars, and more

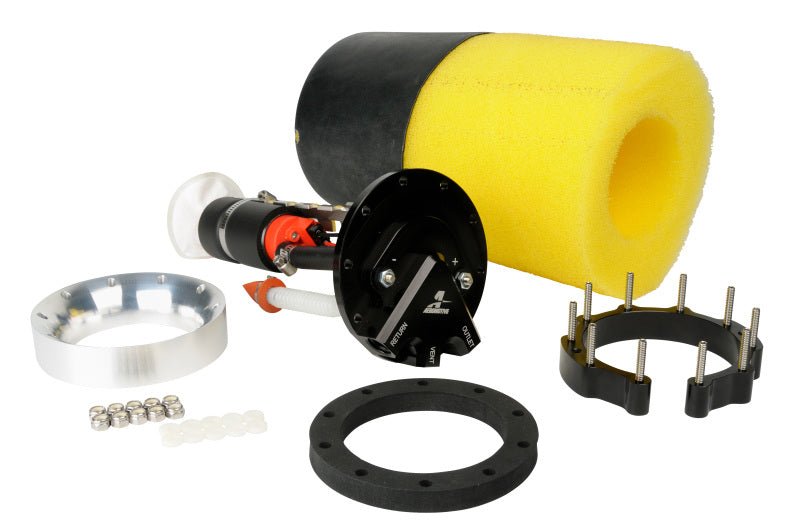

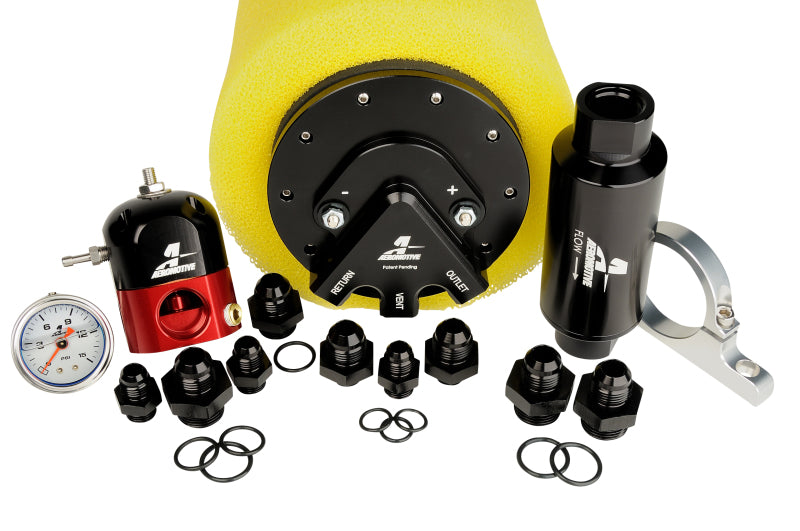

This kit includes all the hardware, seals, and installation tools needed to simplify your fuel system upgrade and get you back on the road with confidence.
